Layered pop up card with a star SVG

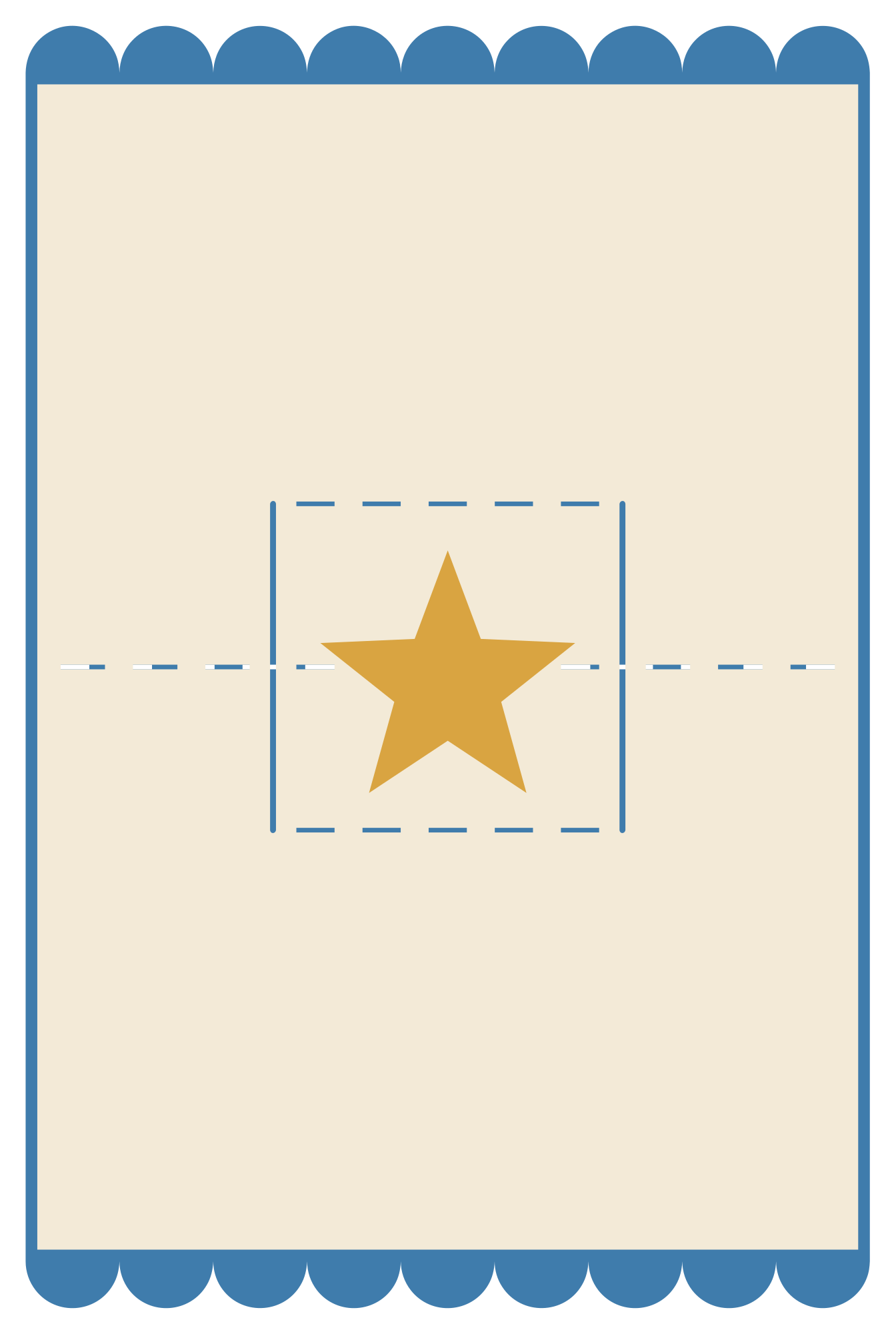

Three colours stacked as they are glued: a cover with scalloped ends, the inner sheet with one step, and a star for the front of the step, where it stands 21 mm above the box. Cut 231 mm tall, the sheet folds to 148 × 105 mm and the cover to 152 × 116 mm.
Free for personal and commercial use, no sign-up. What you can do with it.
What is in the file
| Size | 66 × 100 mm (2.59 × 3.94 in), scales to any size |
|---|---|
| Pieces | 3 separate pieces |
| Outlines to cut | 39: 3 outer edges and 36 cut-outs |
| Cut length | 1,106 mm at this size |
| Narrowest part | 2.3 mm at this size |
| Nodes | 218 curve and line segments |
| Layers | 3: cover, sheet and star |
Measured from the file. PNG: 1,344 × 2,000 pixels, transparent. About the three file types.
Will it cut at your size?
Scaling a design scales its thinnest part too. Here is this one at seven sizes, from 1 to 12 inches on its longer side, with how many copies fit a 12 × 12 inch sheet or mat.
| Size, width × height | Narrowest part | Cut length | Fit on a 12 in sheet | Rule of thumb |
|---|---|---|---|---|
| 0.66 × 1 in (17 × 25 mm) | 0.58 mm | 281 mm | 140 | Fine detail: vinyl and paper only, weed with care |
| 1.32 × 2 in (33 × 51 mm) | 1.2 mm | 562 mm | 40 | Vinyl, card and thin sheet |
| 1.98 × 3 in (50 × 76 mm) | 1.8 mm | 843 mm | 15 | Vinyl, card and thin sheet |
| 2.64 × 4 in (67 × 102 mm) | 2.3 mm | 1,124 mm | 8 | Vinyl, card and thin sheet |
| 3.95 × 6 in (100 × 152 mm) | 3.5 mm | 1,686 mm | 2 | Any material, including 3 mm wood and acrylic |
| 5.27 × 8 in (134 × 203 mm) | 4.7 mm | 2,247 mm | 2 | Any material, including 3 mm wood and acrylic |
| 7.91 × 12 in (201 × 305 mm) | 7 mm | 3,371 mm | 1 | Any material, including 3 mm wood and acrylic |
The narrowest part is the thinnest neck that holds the design together; sharp tips are not counted. For wood and acrylic, keep it at least as wide as the sheet is thick. How to open the file in Cricut, Silhouette and laser software.
