Layered Leo lion in three colours SVG
Which one? SVG for Cricut and lasers, DXF for the free Silhouette Studio, PNG to print.
Free for personal and commercial use, no sign-up. What you can do with it.

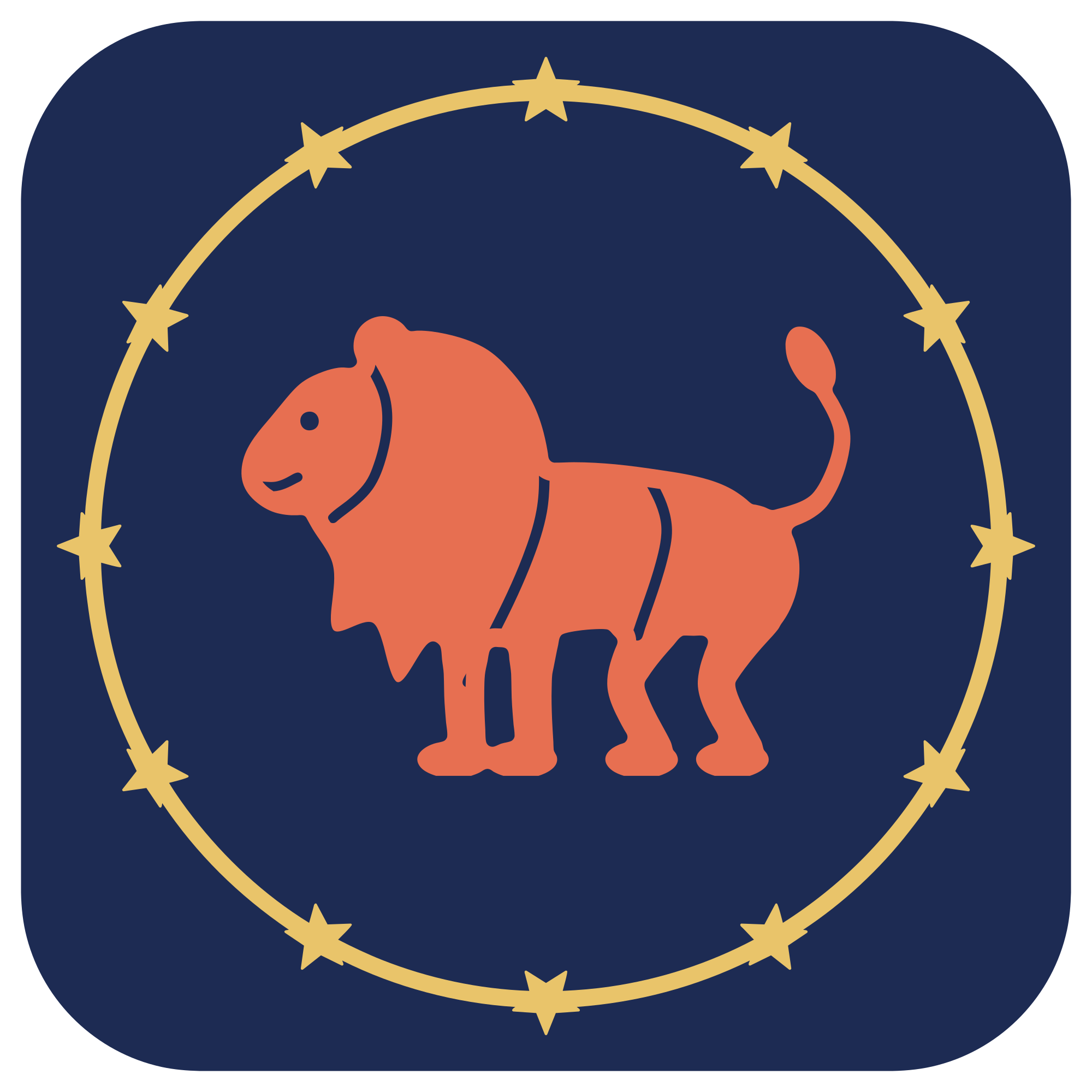

Three layers to stack: a navy tile 100 mm square with rounded corners, a gold ring of twelve stars, and the lion of Leo in a warm red for a fire sign.
What is in the file
| Size | 100 × 100 mm (3.94 × 3.94 in), scales to any size |
|---|---|
| Pieces | 3 separate pieces |
| Outlines to cut | 11: 3 outer edges and 8 cut-outs |
| Cut length | 1,451 mm at this size |
| Narrowest part | Nothing narrower than 6 mm at this size |
| Nodes | 654 curve and line segments |
| Layers | 3: sky, stars and figure |
Measured from the file. PNG: 2,000 × 2,000 pixels, transparent. About the three file types.
Will it cut at your size?
Scaling a design scales its thinnest part too. Here is this one at seven sizes, from 1 to 12 inches on its longer side, with how many copies fit a 12 × 12 inch sheet or mat.
| Size, width × height | Narrowest part | Cut length | Fit on a 12 in sheet | Rule of thumb |
|---|---|---|---|---|
| 1 × 1 in (25 × 25 mm) | Over 1.5 mm | 369 mm | 100 | Vinyl, card and thin sheet |
| 2 × 2 in (51 × 51 mm) | Over 3 mm | 737 mm | 25 | Any material, including 3 mm wood and acrylic |
| 3 × 3 in (76 × 76 mm) | Over 4.6 mm | 1,106 mm | 9 | Any material, including 3 mm wood and acrylic |
| 4 × 4 in (102 × 102 mm) | Over 6.1 mm | 1,474 mm | 4 | Any material, including 3 mm wood and acrylic |
| 6 × 6 in (152 × 152 mm) | Over 9.1 mm | 2,211 mm | 1 | Any material, including 3 mm wood and acrylic |
| 8 × 8 in (203 × 203 mm) | Over 12 mm | 2,948 mm | 1 | Any material, including 3 mm wood and acrylic |
| 12 × 12 in (305 × 305 mm) | Over 18 mm | 4,423 mm | 1 | Any material, including 3 mm wood and acrylic |
The narrowest part is the thinnest neck that holds the design together; sharp tips are not counted. For wood and acrylic, keep it at least as wide as the sheet is thick. How to open the file in Cricut, Silhouette and laser software.
