Layered zodiac wheel in three colours SVG
Which one? SVG for Cricut and lasers, DXF for the free Silhouette Studio, PNG to print.
Free for personal and commercial use, no sign-up. What you can do with it.

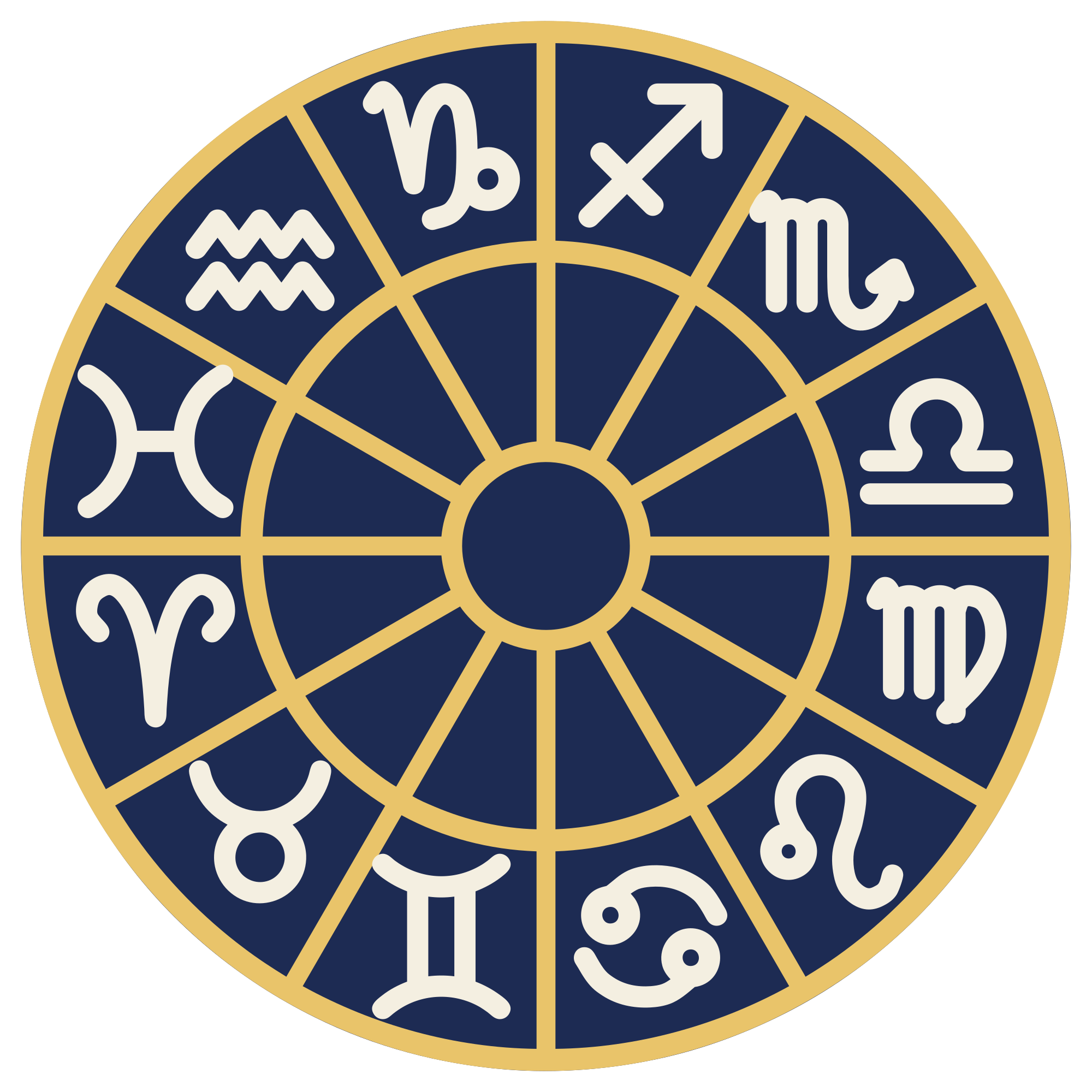

Three layers to stack: a navy disc 100 mm across, the rings, spokes and sun of the wheel in gold, and the twelve glyphs in cream. The glyphs are loose pieces, so place them with transfer tape.
What is in the file
| Size | 100 × 100 mm (3.94 × 3.94 in), scales to any size |
|---|---|
| Pieces | 17 separate pieces |
| Outlines to cut | 49: 17 outer edges and 32 cut-outs |
| Cut length | 3,154 mm at this size |
| Narrowest part | Nothing narrower than 6 mm at this size |
| Nodes | 518 curve and line segments |
| Layers | 3: sky, wheel and glyphs |
Measured from the file. PNG: 2,000 × 2,000 pixels, transparent. About the three file types.
Will it cut at your size?
Scaling a design scales its thinnest part too. Here is this one at seven sizes, from 1 to 12 inches on its longer side, with how many copies fit a 12 × 12 inch sheet or mat.
| Size, width × height | Narrowest part | Cut length | Fit on a 12 in sheet | Rule of thumb |
|---|---|---|---|---|
| 1 × 1 in (25 × 25 mm) | Over 1.5 mm | 801 mm | 100 | Vinyl, card and thin sheet |
| 2 × 2 in (51 × 51 mm) | Over 3 mm | 1,602 mm | 25 | Any material, including 3 mm wood and acrylic |
| 3 × 3 in (76 × 76 mm) | Over 4.6 mm | 2,403 mm | 9 | Any material, including 3 mm wood and acrylic |
| 4 × 4 in (102 × 102 mm) | Over 6.1 mm | 3,204 mm | 4 | Any material, including 3 mm wood and acrylic |
| 6 × 6 in (152 × 152 mm) | Over 9.1 mm | 4,807 mm | 1 | Any material, including 3 mm wood and acrylic |
| 8 × 8 in (203 × 203 mm) | Over 12 mm | 6,409 mm | 1 | Any material, including 3 mm wood and acrylic |
| 12 × 12 in (305 × 305 mm) | Over 18 mm | 9,613 mm | 1 | Any material, including 3 mm wood and acrylic |
The narrowest part is the thinnest neck that holds the design together; sharp tips are not counted. For wood and acrylic, keep it at least as wide as the sheet is thick. How to open the file in Cricut, Silhouette and laser software.
