Layered water tracker in two colours SVG
Which one? SVG for Cricut and lasers, DXF for the free Silhouette Studio, PNG to print.
Free for personal and commercial use, no sign-up. What you can do with it.

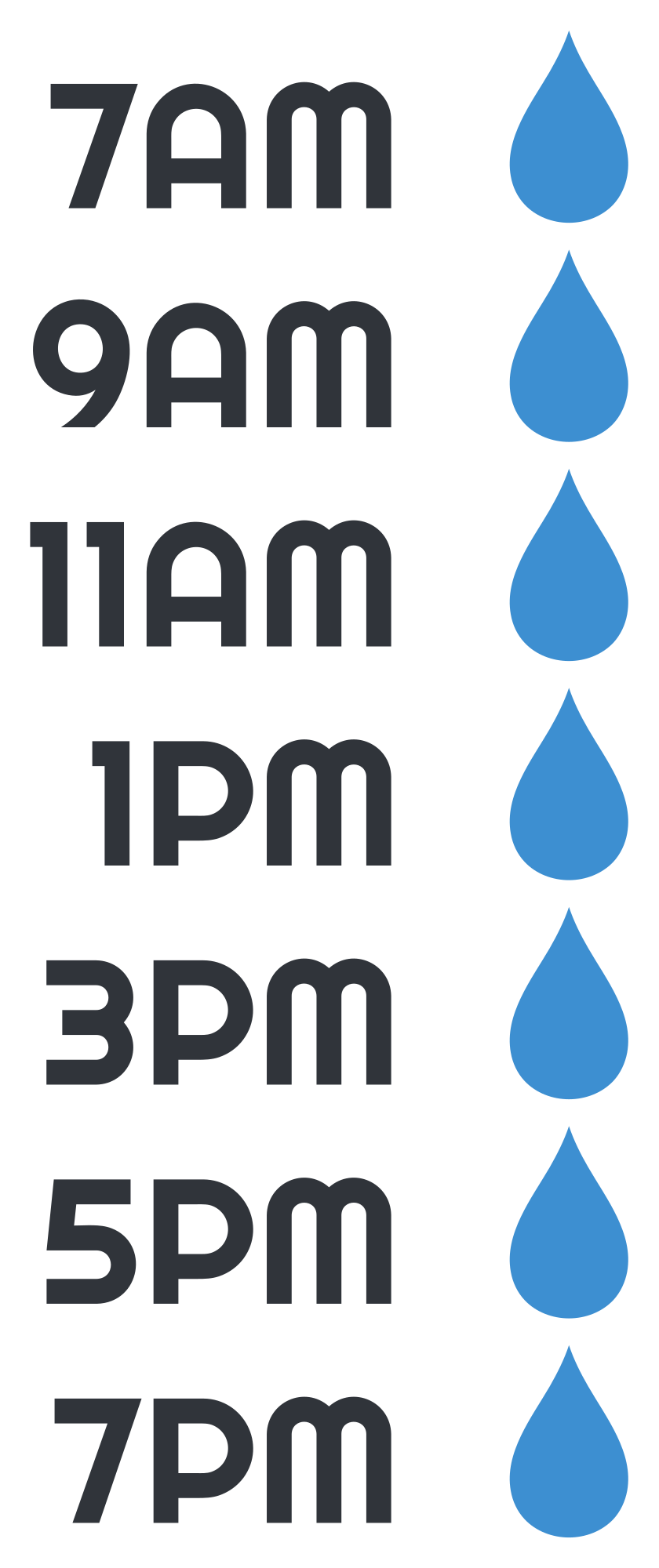

The seven times in a dark colour with a blue drop beside each in place of a mark: two layers, cut from two vinyls and applied one after the other. The drops are in a straight column, so a strip of tape lines them up.
What is in the file
| Size | 40 × 100 mm (1.56 × 3.94 in), scales to any size |
|---|---|
| Pieces | 29 separate pieces |
| Outlines to cut | 37: 29 outer edges and 8 cut-outs |
| Cut length | 1,142 mm at this size |
| Narrowest part | 1.7 mm at this size |
| Nodes | 313 curve and line segments |
| Layers | 2: times and drops |
Measured from the file. PNG: 840 × 2,000 pixels, transparent. About the three file types.
Will it cut at your size?
Scaling a design scales its thinnest part too. Here is this one at seven sizes, from 1 to 12 inches on its longer side, with how many copies fit a 12 × 12 inch sheet or mat.
| Size, width × height | Narrowest part | Cut length | Fit on a 12 in sheet | Rule of thumb |
|---|---|---|---|---|
| 0.4 × 1 in (10 × 25 mm) | 0.43 mm | 290 mm | 200 | Too fine for most machines |
| 0.79 × 2 in (20 × 51 mm) | 0.86 mm | 580 mm | 60 | Fine detail: vinyl and paper only, weed with care |
| 1.19 × 3 in (30 × 76 mm) | 1.3 mm | 870 mm | 24 | Vinyl, card and thin sheet |
| 1.59 × 4 in (40 × 102 mm) | 1.7 mm | 1,160 mm | 12 | Vinyl, card and thin sheet |
| 2.38 × 6 in (61 × 152 mm) | 2.6 mm | 1,740 mm | 4 | Vinyl, card and thin sheet |
| 3.18 × 8 in (81 × 203 mm) | 3.5 mm | 2,321 mm | 3 | Any material, including 3 mm wood and acrylic |
| 4.76 × 12 in (121 × 305 mm) | 5.2 mm | 3,481 mm | 2 | Any material, including 3 mm wood and acrylic |
The narrowest part is the thinnest neck that holds the design together; sharp tips are not counted. For wood and acrylic, keep it at least as wide as the sheet is thick. How to open the file in Cricut, Silhouette and laser software.
