Layered mountain landscape in three colours SVG

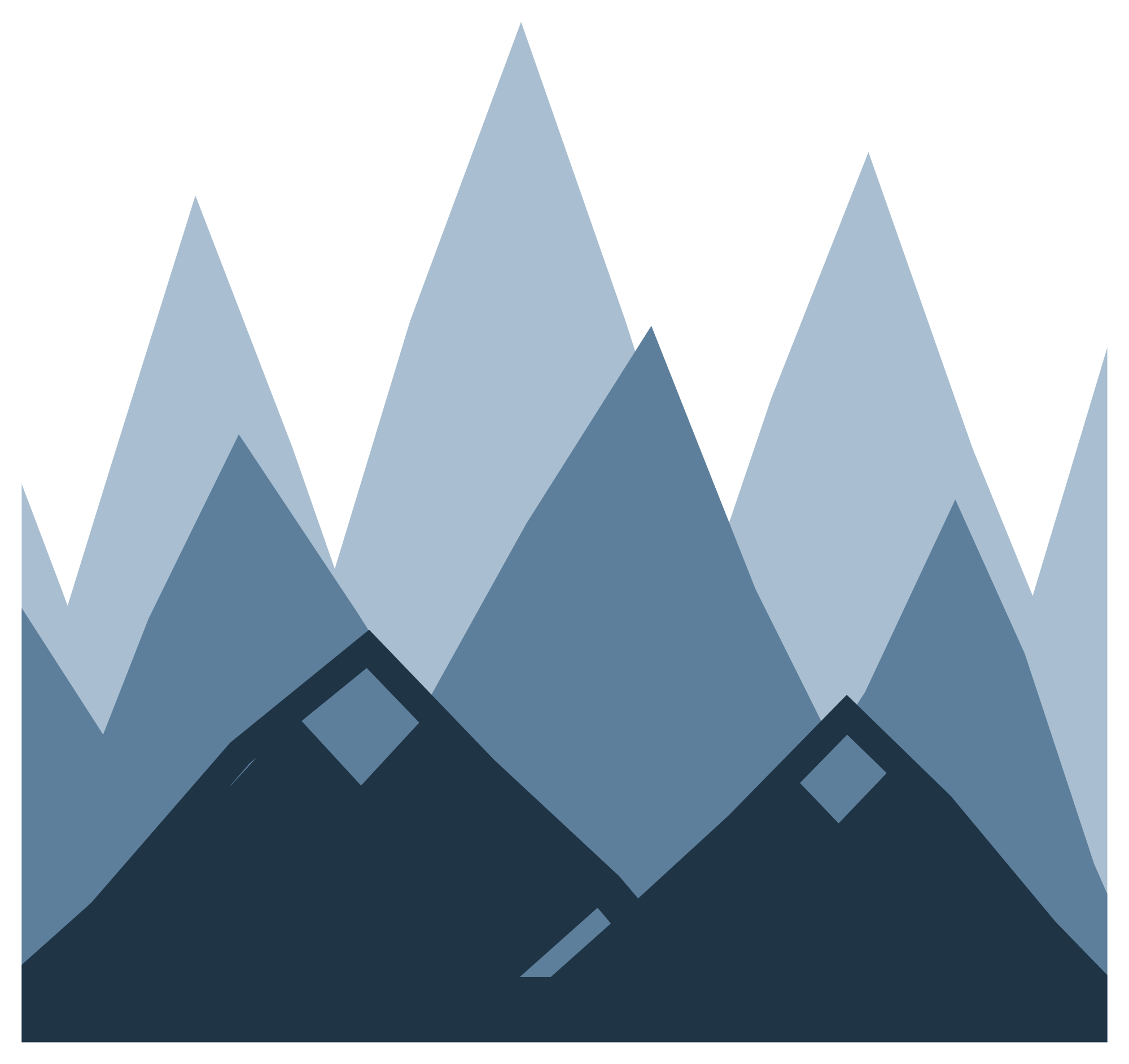

Three ranges to stack: a pale far range, a mid-blue one in front of it and a dark near range with snow caps. Each layer runs to the bottom edge, so they glue up flush.
Free for personal and commercial use, no sign-up. What you can do with it.
What is in the file
| Size | 100 × 94 mm (3.94 × 3.7 in), scales to any size |
|---|---|
| Pieces | 3 separate pieces |
| Outlines to cut | 7: 3 outer edges and 4 cut-outs |
| Cut length | 1,235 mm at this size |
| Narrowest part | Nothing narrower than 6 mm at this size |
| Nodes | 74 curve and line segments |
| Layers | 3: far range, middle range and near range |
Measured from the file. PNG: 2,000 × 1,885 pixels, transparent. About the three file types.
Will it cut at your size?
Scaling a design scales its thinnest part too. Here is this one at seven sizes, from 1 to 12 inches on its longer side, with how many copies fit a 12 × 12 inch sheet or mat.
| Size, width × height | Narrowest part | Cut length | Fit on a 12 in sheet | Rule of thumb |
|---|---|---|---|---|
| 1 × 0.94 in (25 × 24 mm) | Over 1.5 mm | 314 mm | 100 | Vinyl, card and thin sheet |
| 2 × 1.88 in (51 × 48 mm) | Over 3 mm | 627 mm | 25 | Any material, including 3 mm wood and acrylic |
| 3 × 2.82 in (76 × 72 mm) | Over 4.6 mm | 941 mm | 12 | Any material, including 3 mm wood and acrylic |
| 4 × 3.76 in (102 × 96 mm) | Over 6.1 mm | 1,255 mm | 6 | Any material, including 3 mm wood and acrylic |
| 6 × 5.64 in (152 × 143 mm) | Over 9.1 mm | 1,882 mm | 2 | Any material, including 3 mm wood and acrylic |
| 8 × 7.52 in (203 × 191 mm) | Over 12 mm | 2,510 mm | 1 | Any material, including 3 mm wood and acrylic |
| 12 × 11.28 in (305 × 287 mm) | Over 18 mm | 3,764 mm | 1 | Any material, including 3 mm wood and acrylic |
The narrowest part is the thinnest neck that holds the design together; sharp tips are not counted. For wood and acrylic, keep it at least as wide as the sheet is thick. How to open the file in Cricut, Silhouette and laser software.
