Layered 3D mandala SVG

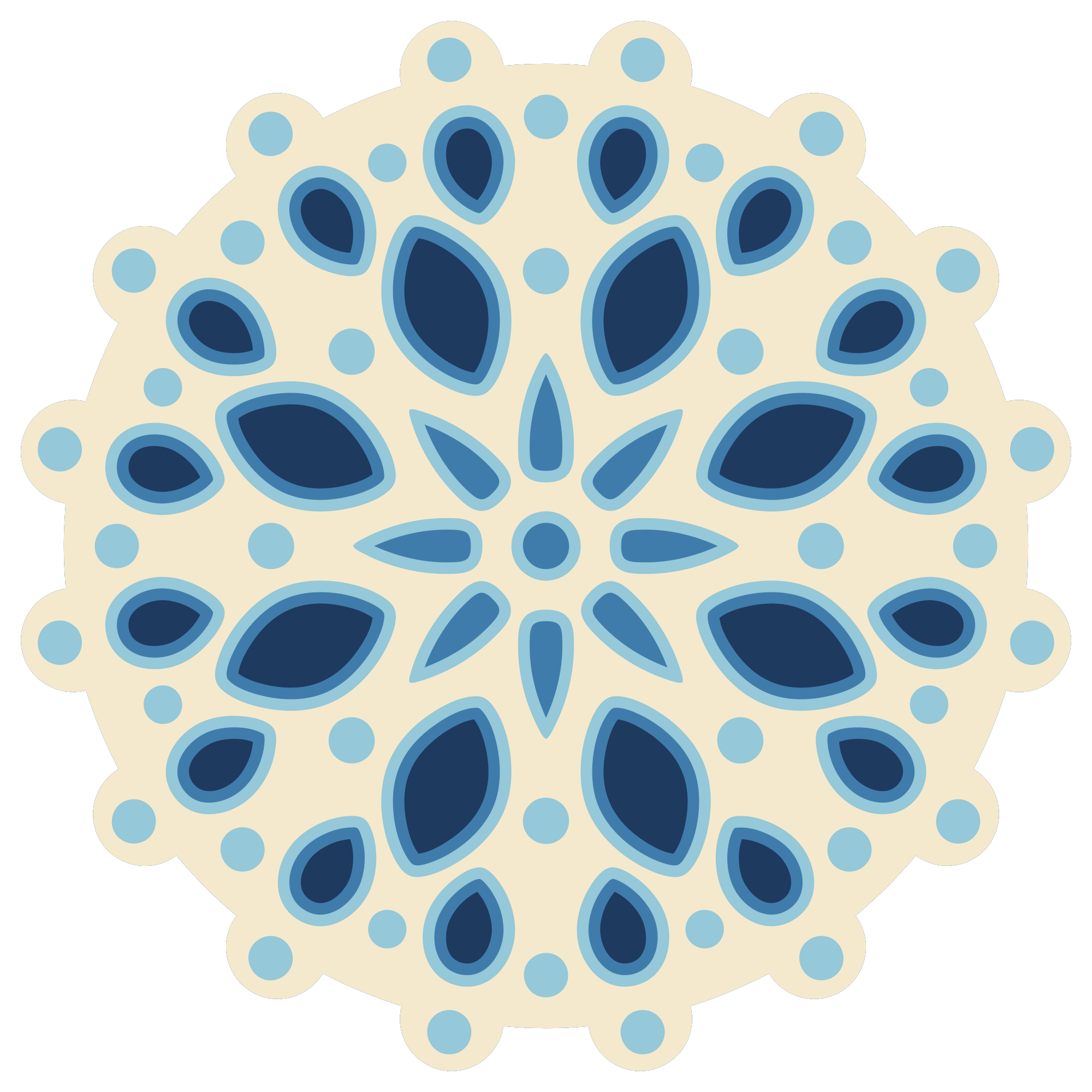

Four scalloped discs of the same size: a solid base, then three cut with the same petal and dot windows, smaller on each layer down, so every colour shows as a step inside the one above.
Free for personal and commercial use, no sign-up. What you can do with it.
What is in the file
| Size | 100 × 100 mm (3.94 × 3.94 in), scales to any size |
|---|---|
| Pieces | 4 separate pieces |
| Outlines to cut | 134: 4 outer edges and 130 cut-outs |
| Cut length | 4,631 mm at this size |
| Narrowest part | Nothing narrower than 6 mm at this size |
| Nodes | 1,059 curve and line segments |
| Symmetry | 8-fold rotation and mirror |
| Layers | 4: layer 1 base, layer 2, layer 3 and layer 4 top |
Measured from the file. PNG: 2,000 × 2,000 pixels, transparent. About the three file types.
Will it cut at your size?
Scaling a design scales its thinnest part too. Here is this one at seven sizes, from 1 to 12 inches on its longer side, with how many copies fit a 12 × 12 inch sheet or mat.
| Size, width × height | Narrowest part | Cut length | Fit on a 12 in sheet | Rule of thumb |
|---|---|---|---|---|
| 1 × 1 in (25 × 25 mm) | Over 1.5 mm | 1,176 mm | 100 | Vinyl, card and thin sheet |
| 2 × 2 in (51 × 51 mm) | Over 3 mm | 2,353 mm | 25 | Any material, including 3 mm wood and acrylic |
| 3 × 3 in (76 × 76 mm) | Over 4.6 mm | 3,529 mm | 9 | Any material, including 3 mm wood and acrylic |
| 4 × 4 in (102 × 102 mm) | Over 6.1 mm | 4,705 mm | 4 | Any material, including 3 mm wood and acrylic |
| 6 × 6 in (152 × 152 mm) | Over 9.1 mm | 7,058 mm | 1 | Any material, including 3 mm wood and acrylic |
| 8 × 8 in (203 × 203 mm) | Over 12 mm | 9,410 mm | 1 | Any material, including 3 mm wood and acrylic |
| 12 × 12 in (305 × 305 mm) | Over 18 mm | 14,115 mm | 1 | Any material, including 3 mm wood and acrylic |
The narrowest part is the thinnest neck that holds the design together; sharp tips are not counted. For wood and acrylic, keep it at least as wide as the sheet is thick. How to open the file in Cricut, Silhouette and laser software.
