Layered kitchen conversion chart on a board SVG
Which one? SVG for Cricut and lasers, DXF for the free Silhouette Studio, PNG to print.
Free for personal and commercial use, no sign-up. What you can do with it.

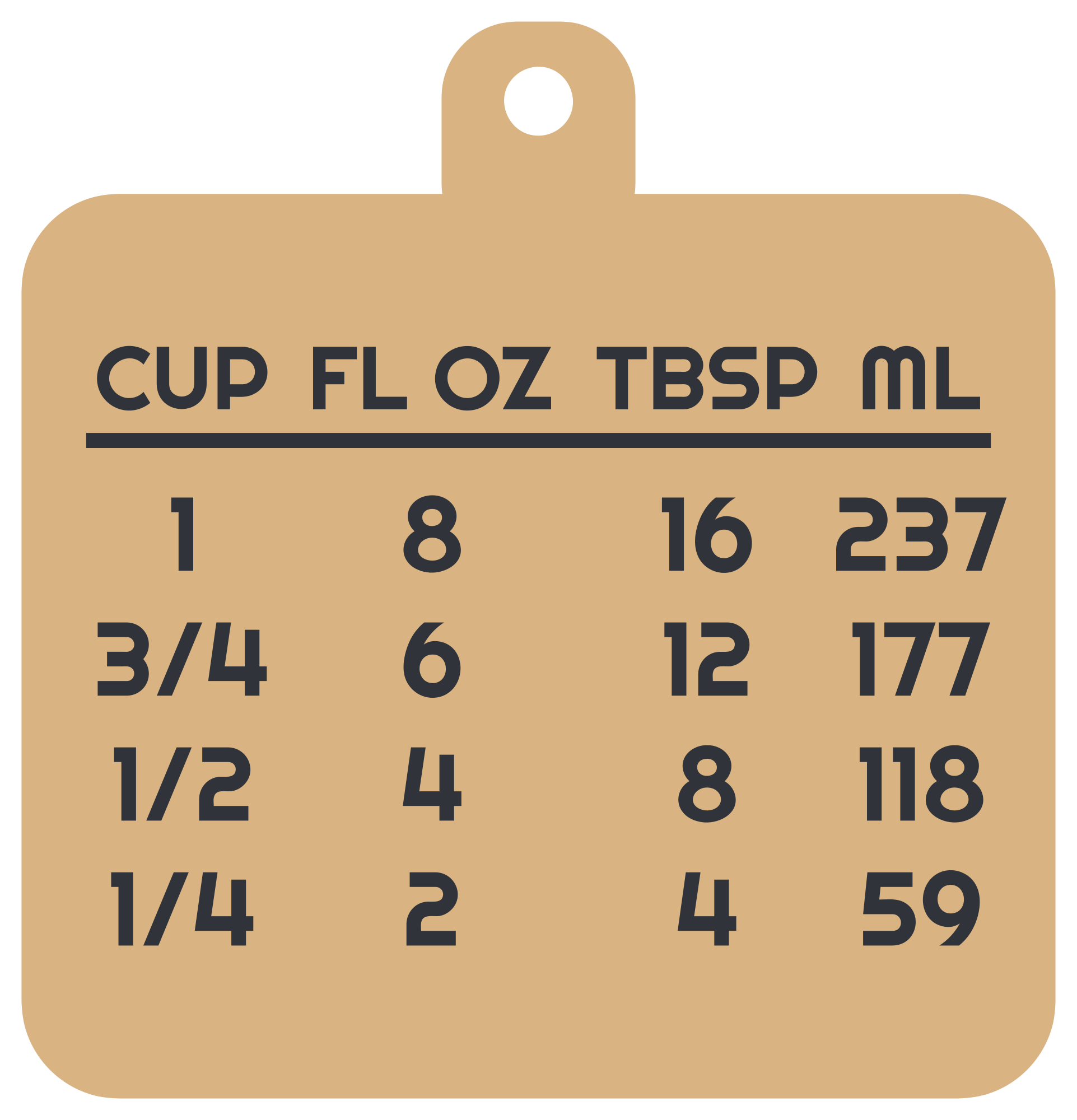

Two layers: a chopping board with a handle and a hanging hole, and the cup table to lay on it in a second colour, 1 cup down to 1/4 cup with fluid ounces, tablespoons and millilitres. Cut the board from wood or card and the table from vinyl.
What is in the file
| Size | 96 × 100 mm (3.78 × 3.94 in), scales to any size |
|---|---|
| Pieces | 46 separate pieces |
| Outlines to cut | 61: 46 outer edges and 15 cut-outs |
| Cut length | 1,724 mm at this size |
| Narrowest part | Nothing narrower than 6 mm at this size |
| Nodes | 476 curve and line segments |
| Layers | 2: board and table |
| Also found as | Kitchen measurement conversion SVG |
Measured from the file. PNG: 1,923 × 2,000 pixels, transparent. About the three file types.
Will it cut at your size?
Scaling a design scales its thinnest part too. Here is this one at seven sizes, from 1 to 12 inches on its longer side, with how many copies fit a 12 × 12 inch sheet or mat.
| Size, width × height | Narrowest part | Cut length | Fit on a 12 in sheet | Rule of thumb |
|---|---|---|---|---|
| 0.96 × 1 in (24 × 25 mm) | Over 1.5 mm | 438 mm | 100 | Vinyl, card and thin sheet |
| 1.92 × 2 in (49 × 51 mm) | Over 3 mm | 876 mm | 25 | Any material, including 3 mm wood and acrylic |
| 2.88 × 3 in (73 × 76 mm) | Over 4.6 mm | 1,314 mm | 9 | Any material, including 3 mm wood and acrylic |
| 3.84 × 4 in (98 × 102 mm) | Over 6.1 mm | 1,752 mm | 6 | Any material, including 3 mm wood and acrylic |
| 5.76 × 6 in (146 × 152 mm) | Over 9.1 mm | 2,627 mm | 2 | Any material, including 3 mm wood and acrylic |
| 7.68 × 8 in (195 × 203 mm) | Over 12 mm | 3,503 mm | 1 | Any material, including 3 mm wood and acrylic |
| 11.52 × 12 in (293 × 305 mm) | Over 18 mm | 5,255 mm | 1 | Any material, including 3 mm wood and acrylic |
The narrowest part is the thinnest neck that holds the design together; sharp tips are not counted. For wood and acrylic, keep it at least as wide as the sheet is thick. How to open the file in Cricut, Silhouette and laser software.
