Layered Illinois on a hexagon SVG

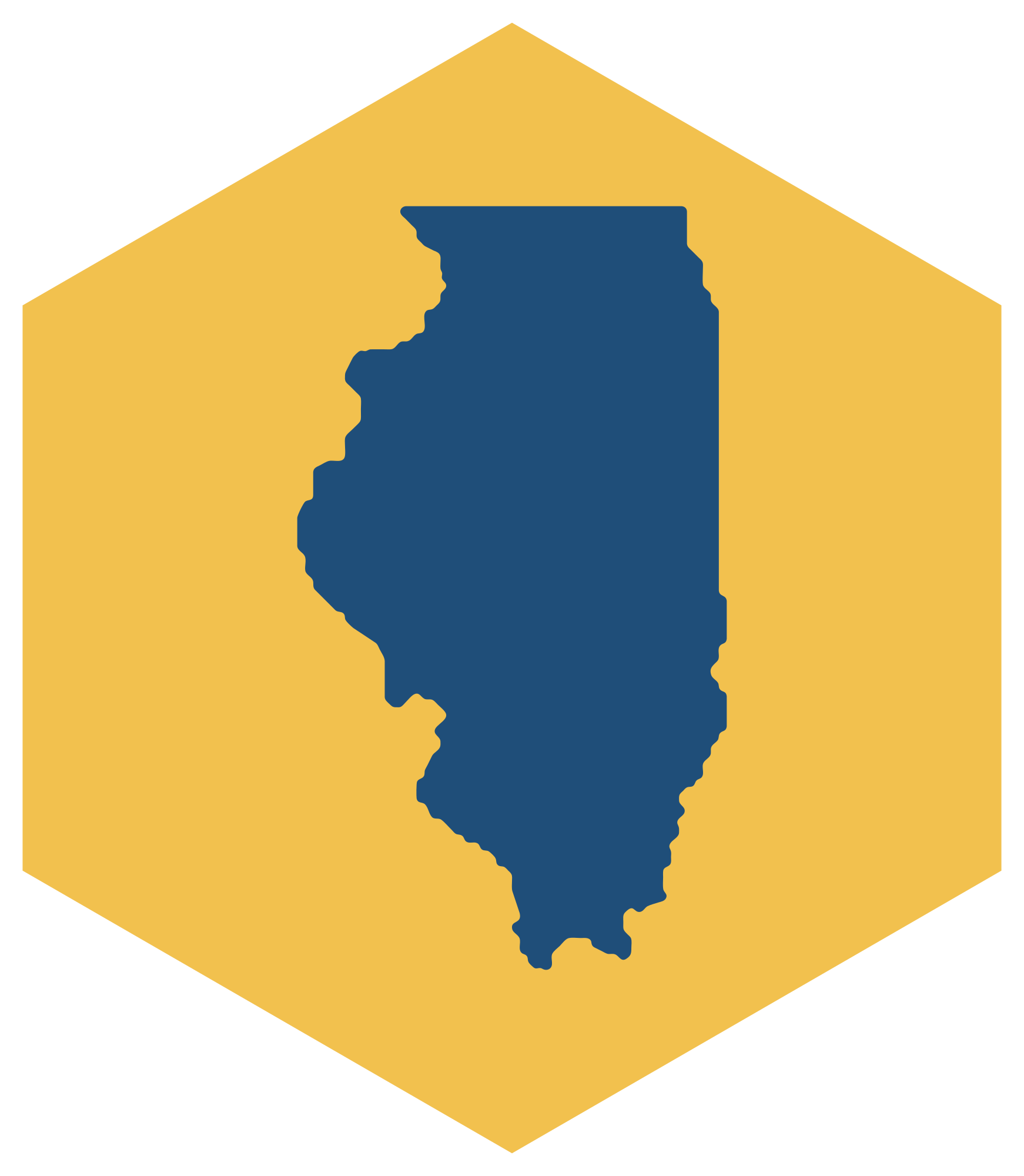

Illinois in two colours: a hexagon 100 mm across its points, and the state to lay on top of it. Cut each from its own colour of vinyl or card; this Illinois is the solid version at a smaller size.
Free for personal and commercial use, no sign-up. What you can do with it.
What is in the file
| Size | 87 × 100 mm (3.41 × 3.94 in), scales to any size |
|---|---|
| Pieces | 2 separate pieces |
| Outlines to cut | 2 outlines |
| Cut length | 506 mm at this size |
| Narrowest part | Nothing narrower than 6 mm at this size |
| Nodes | 177 curve and line segments |
| Layers | 2: hexagon and illinois |
Measured from the file. PNG: 1,742 × 2,000 pixels, transparent. About the three file types.
Will it cut at your size?
Scaling a design scales its thinnest part too. Here is this one at seven sizes, from 1 to 12 inches on its longer side, with how many copies fit a 12 × 12 inch sheet or mat.
| Size, width × height | Narrowest part | Cut length | Fit on a 12 in sheet | Rule of thumb |
|---|---|---|---|---|
| 0.87 × 1 in (22 × 25 mm) | Over 1.5 mm | 129 mm | 110 | Vinyl, card and thin sheet |
| 1.73 × 2 in (44 × 51 mm) | Over 3 mm | 257 mm | 30 | Any material, including 3 mm wood and acrylic |
| 2.6 × 3 in (66 × 76 mm) | Over 4.6 mm | 386 mm | 12 | Any material, including 3 mm wood and acrylic |
| 3.46 × 4 in (88 × 102 mm) | Over 6.1 mm | 514 mm | 6 | Any material, including 3 mm wood and acrylic |
| 5.2 × 6 in (132 × 152 mm) | Over 9.1 mm | 771 mm | 2 | Any material, including 3 mm wood and acrylic |
| 6.93 × 8 in (176 × 203 mm) | Over 12 mm | 1,028 mm | 1 | Any material, including 3 mm wood and acrylic |
| 10.39 × 12 in (264 × 305 mm) | Over 18 mm | 1,542 mm | 1 | Any material, including 3 mm wood and acrylic |
The narrowest part is the thinnest neck that holds the design together; sharp tips are not counted. For wood and acrylic, keep it at least as wide as the sheet is thick. How to open the file in Cricut, Silhouette and laser software.
