Layered acoustic guitar in four colours SVG

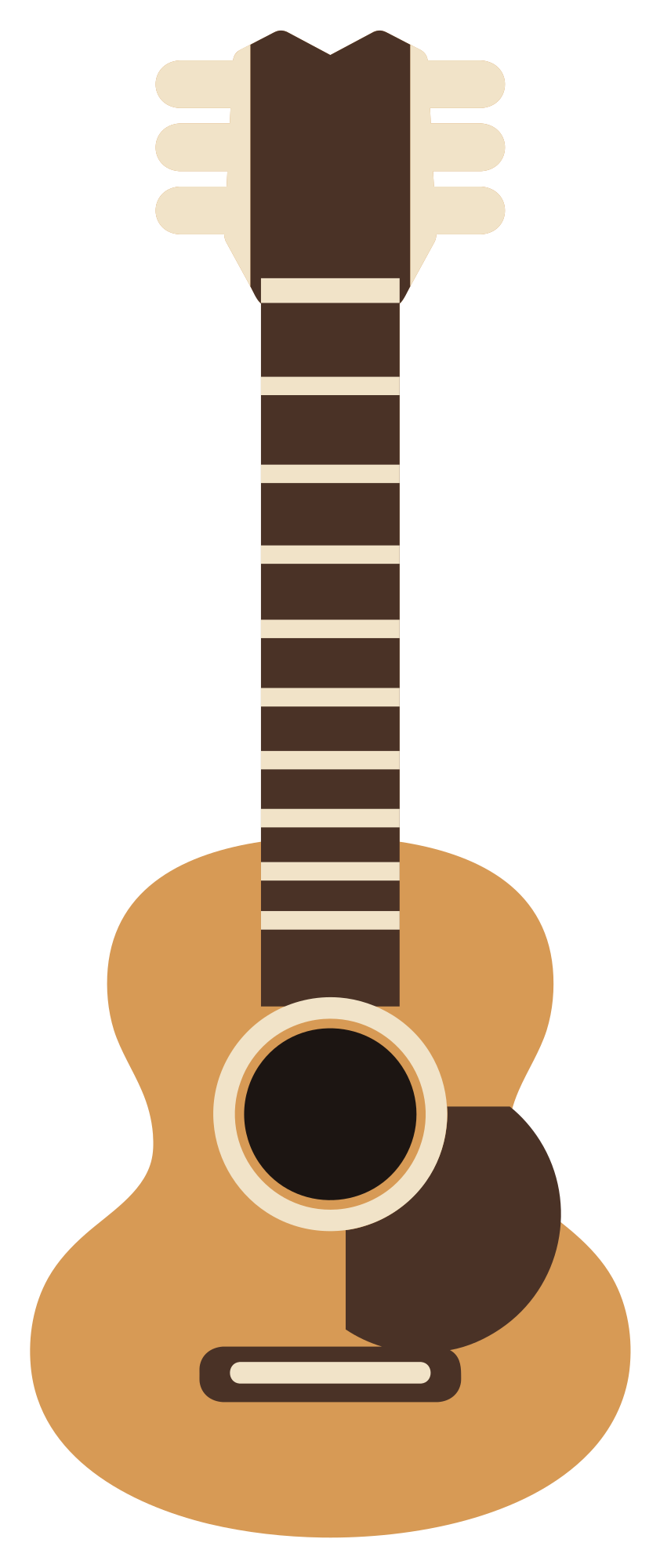

Four layers to stack: a honey body, a dark neck with its headstock, bridge and pick guard, a black sound hole, and cream frets, pegs and a ring round the hole.
Free for personal and commercial use, no sign-up. What you can do with it.
What is in the file
| Size | 40 × 100 mm (1.57 × 3.94 in), scales to any size |
|---|---|
| Pieces | 18 separate pieces |
| Outlines to cut | 19: 18 outer edges and 1 cut-out |
| Cut length | 1,017 mm at this size |
| Narrowest part | Nothing narrower than 6 mm at this size |
| Nodes | 185 curve and line segments |
| Layers | 4: body, neck, hole and trim |
Measured from the file. PNG: 842 × 2,000 pixels, transparent. About the three file types.
Will it cut at your size?
Scaling a design scales its thinnest part too. Here is this one at seven sizes, from 1 to 12 inches on its longer side, with how many copies fit a 12 × 12 inch sheet or mat.
| Size, width × height | Narrowest part | Cut length | Fit on a 12 in sheet | Rule of thumb |
|---|---|---|---|---|
| 0.4 × 1 in (10 × 25 mm) | Over 1.5 mm | 258 mm | 200 | Vinyl, card and thin sheet |
| 0.8 × 2 in (20 × 51 mm) | Over 3 mm | 517 mm | 60 | Any material, including 3 mm wood and acrylic |
| 1.19 × 3 in (30 × 76 mm) | Over 4.6 mm | 775 mm | 24 | Any material, including 3 mm wood and acrylic |
| 1.59 × 4 in (40 × 102 mm) | Over 6.1 mm | 1,033 mm | 12 | Any material, including 3 mm wood and acrylic |
| 2.39 × 6 in (61 × 152 mm) | Over 9.1 mm | 1,550 mm | 4 | Any material, including 3 mm wood and acrylic |
| 3.18 × 8 in (81 × 203 mm) | Over 12 mm | 2,067 mm | 3 | Any material, including 3 mm wood and acrylic |
| 4.78 × 12 in (121 × 305 mm) | Over 18 mm | 3,100 mm | 2 | Any material, including 3 mm wood and acrylic |
The narrowest part is the thinnest neck that holds the design together; sharp tips are not counted. For wood and acrylic, keep it at least as wide as the sheet is thick. How to open the file in Cricut, Silhouette and laser software.
