Gable box with a coloured band and label SVG

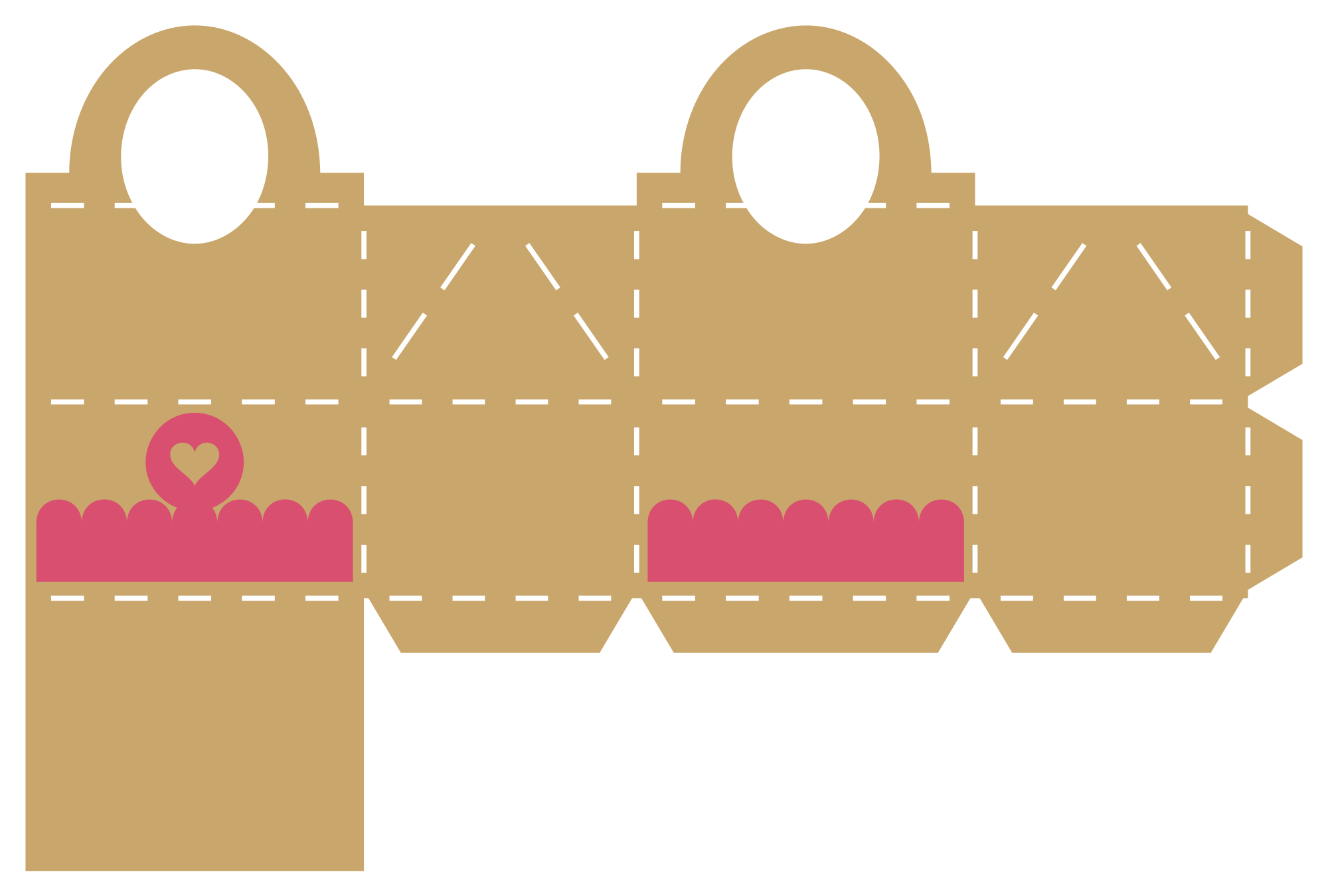

A squat box with a steep roof and two looped handles, with a scalloped band for each long wall and a round label to cut in a second colour. Cut 235 mm wide, it is 62 by 50 mm and 36 mm tall to the eaves.
Free for personal and commercial use, no sign-up. What you can do with it.
What is in the file
| Size | 100 × 66 mm (3.94 × 2.61 in), scales to any size |
|---|---|
| Pieces | 3 separate pieces |
| Outlines to cut | 78: 3 outer edges and 75 cut-outs |
| Cut length | 1,062 mm at this size |
| Narrowest part | 1.9 mm at this size |
| Nodes | 390 curve and line segments |
| Layers | 2: box and bands and label |
Measured from the file. PNG: 2,000 × 1,350 pixels, transparent. About the three file types.
Will it cut at your size?
Scaling a design scales its thinnest part too. Here is this one at seven sizes, from 1 to 12 inches on its longer side, with how many copies fit a 12 × 12 inch sheet or mat.
| Size, width × height | Narrowest part | Cut length | Fit on a 12 in sheet | Rule of thumb |
|---|---|---|---|---|
| 1 × 0.66 in (25 × 17 mm) | 0.48 mm | 270 mm | 140 | Too fine for most machines |
| 2 × 1.32 in (51 × 34 mm) | 0.97 mm | 539 mm | 40 | Fine detail: vinyl and paper only, weed with care |
| 3 × 1.99 in (76 × 50 mm) | 1.4 mm | 809 mm | 15 | Vinyl, card and thin sheet |
| 4 × 2.65 in (102 × 67 mm) | 1.9 mm | 1,079 mm | 8 | Vinyl, card and thin sheet |
| 6 × 3.97 in (152 × 101 mm) | 2.9 mm | 1,618 mm | 2 | Vinyl, card and thin sheet |
| 8 × 5.3 in (203 × 135 mm) | 3.9 mm | 2,158 mm | 2 | Any material, including 3 mm wood and acrylic |
| 12 × 7.94 in (305 × 202 mm) | 5.8 mm | 3,237 mm | 1 | Any material, including 3 mm wood and acrylic |
The narrowest part is the thinnest neck that holds the design together; sharp tips are not counted. For wood and acrylic, keep it at least as wide as the sheet is thick. How to open the file in Cricut, Silhouette and laser software.
