Layered rainbow with clouds SVG
Which one? SVG for Cricut and lasers, DXF for the free Silhouette Studio, PNG to print.
Free for personal and commercial use, no sign-up. What you can do with it.

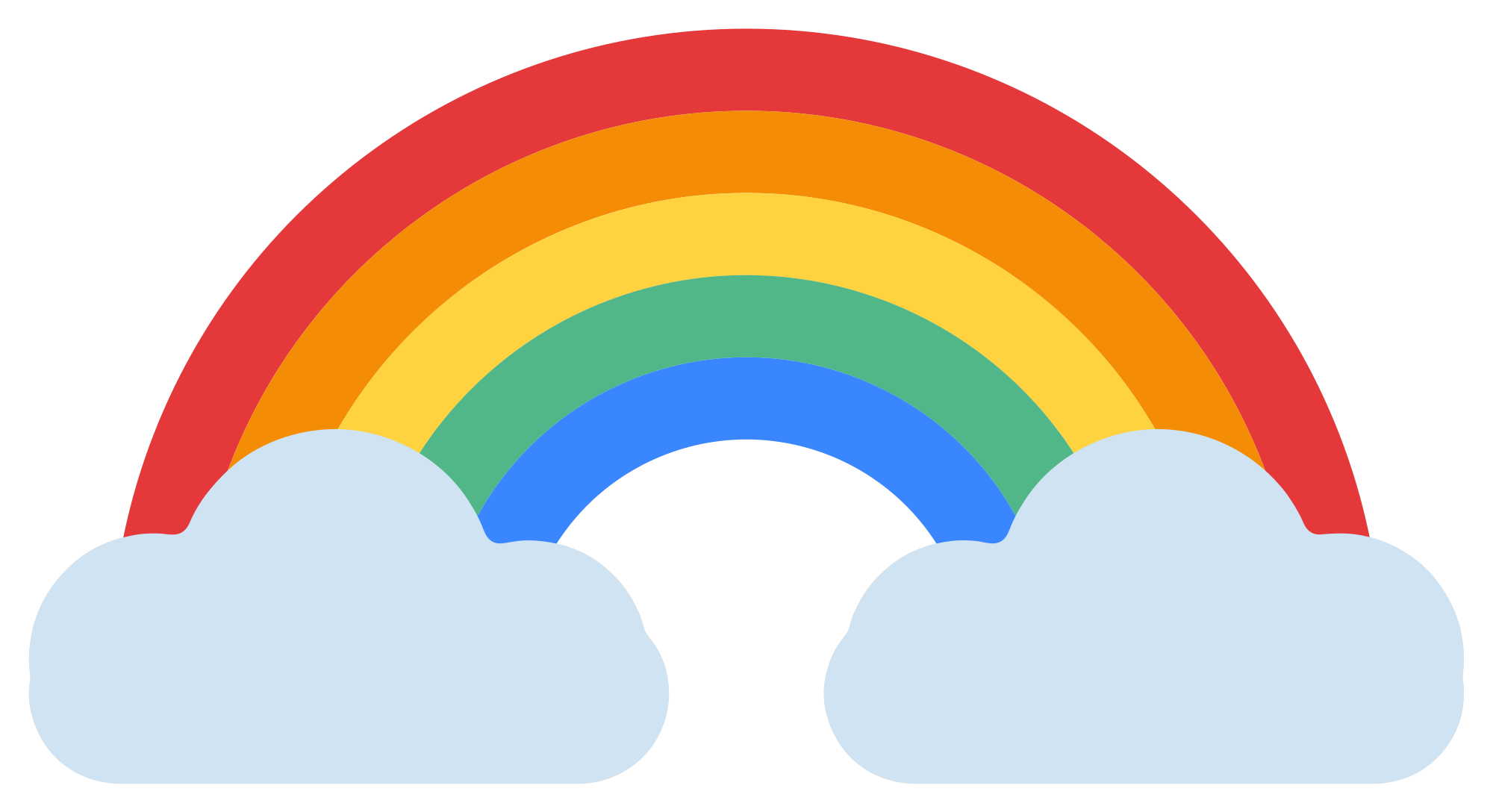

Five colour bands and a pair of pale clouds over their ends, each colour on its own layer. The backing piece is the whole outline in one.
What is in the file
| Size | 100 × 53 mm (3.94 × 2.07 in), scales to any size |
|---|---|
| Pieces | 8 separate pieces |
| Outlines to cut | 8 outlines |
| Cut length | 1,545 mm at this size |
| Narrowest part | Nothing narrower than 6 mm at this size |
| Nodes | 150 curve and line segments |
| Layers | 7: backing, red, orange, yellow, green, blue and clouds |
Measured from the file. PNG: 2,000 × 1,088 pixels, transparent. About the three file types.
Will it cut at your size?
Scaling a design scales its thinnest part too. Here is this one at seven sizes, from 1 to 12 inches on its longer side, with how many copies fit a 12 × 12 inch sheet or mat.
| Size, width × height | Narrowest part | Cut length | Fit on a 12 in sheet | Rule of thumb |
|---|---|---|---|---|
| 1 × 0.53 in (25 × 13 mm) | Over 1.5 mm | 392 mm | 160 | Vinyl, card and thin sheet |
| 2 × 1.05 in (51 × 27 mm) | Over 3 mm | 785 mm | 45 | Any material, including 3 mm wood and acrylic |
| 3 × 1.58 in (76 × 40 mm) | Over 4.6 mm | 1,177 mm | 18 | Any material, including 3 mm wood and acrylic |
| 4 × 2.1 in (102 × 53 mm) | Over 6.1 mm | 1,570 mm | 10 | Any material, including 3 mm wood and acrylic |
| 6 × 3.16 in (152 × 80 mm) | Over 9.1 mm | 2,355 mm | 3 | Any material, including 3 mm wood and acrylic |
| 8 × 4.21 in (203 × 107 mm) | Over 12 mm | 3,139 mm | 2 | Any material, including 3 mm wood and acrylic |
| 12 × 6.31 in (305 × 160 mm) | Over 18 mm | 4,709 mm | 1 | Any material, including 3 mm wood and acrylic |
The narrowest part is the thinnest neck or wall beside a cut-out; sharp tips are not counted. For wood and acrylic, keep it at least as wide as the sheet is thick. How to open the file in Cricut, Silhouette and laser software.
