Milk carton with a coloured label and roof SVG

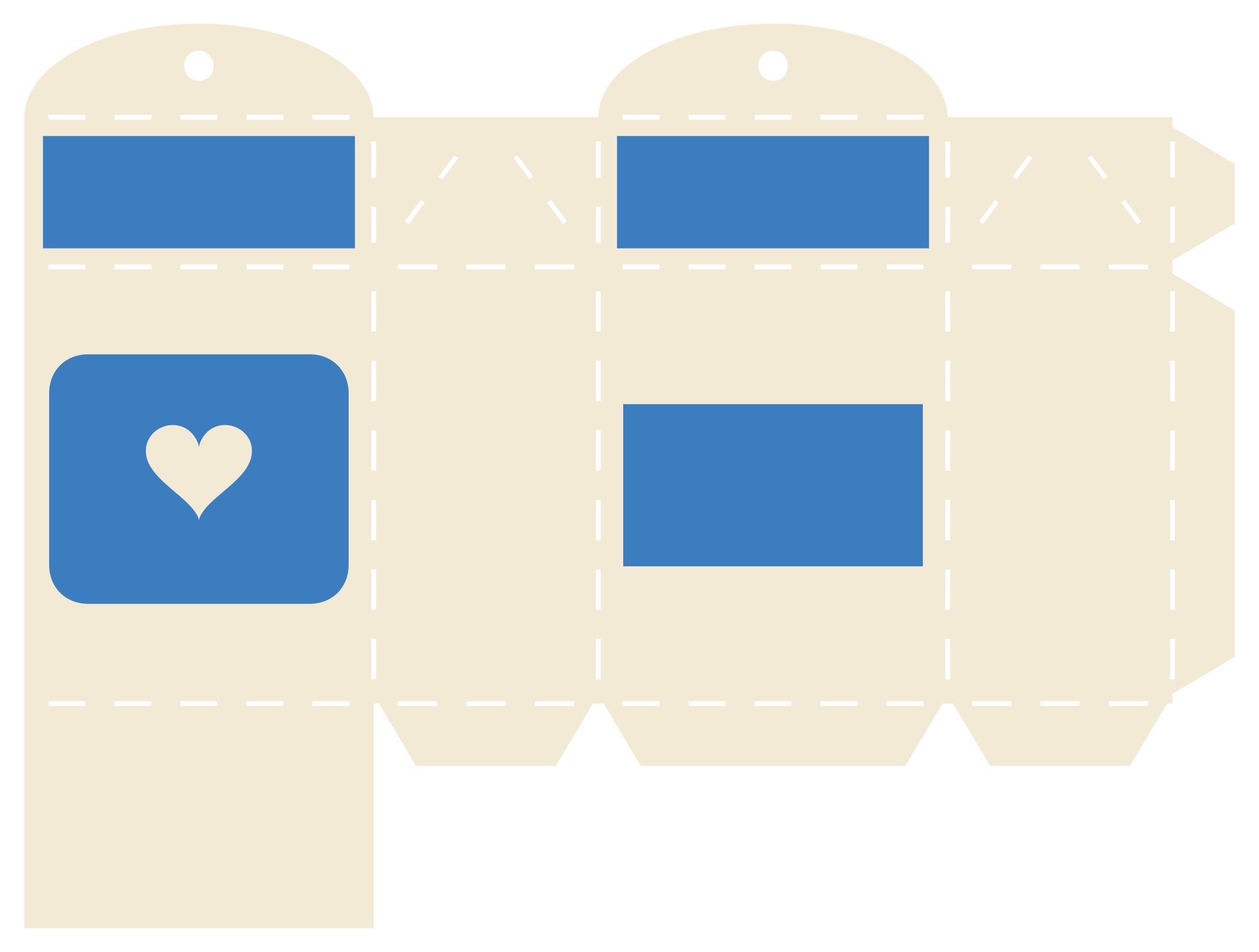

A carton with an arched top and one ribbon hole, and four pieces to cut in a second colour: a label with a heart for the front, a band for the back and two roof panels. Cut 195 mm wide, it is 56 by 36 mm and 70 mm tall to the eaves.
Free for personal and commercial use, no sign-up. What you can do with it.
What is in the file
| Size | 100 × 75 mm (3.94 × 2.94 in), scales to any size |
|---|---|
| Pieces | 5 separate pieces |
| Outlines to cut | 90: 5 outer edges and 85 cut-outs |
| Cut length | 1,283 mm at this size |
| Narrowest part | 1.9 mm at this size |
| Nodes | 398 curve and line segments |
| Layers | 2: carton and label and roof |
Measured from the file. PNG: 2,000 × 1,513 pixels, transparent. About the three file types.
Will it cut at your size?
Scaling a design scales its thinnest part too. Here is this one at seven sizes, from 1 to 12 inches on its longer side, with how many copies fit a 12 × 12 inch sheet or mat.
| Size, width × height | Narrowest part | Cut length | Fit on a 12 in sheet | Rule of thumb |
|---|---|---|---|---|
| 1 × 0.75 in (25 × 19 mm) | 0.48 mm | 326 mm | 120 | Too fine for most machines |
| 2 × 1.49 in (51 × 38 mm) | 0.97 mm | 652 mm | 35 | Fine detail: vinyl and paper only, weed with care |
| 3 × 2.24 in (76 × 57 mm) | 1.4 mm | 978 mm | 15 | Vinyl, card and thin sheet |
| 4 × 2.99 in (102 × 76 mm) | 1.9 mm | 1,304 mm | 6 | Vinyl, card and thin sheet |
| 6 × 4.48 in (152 × 114 mm) | 2.9 mm | 1,955 mm | 2 | Vinyl, card and thin sheet |
| 8 × 5.98 in (203 × 152 mm) | 3.9 mm | 2,607 mm | 1 | Any material, including 3 mm wood and acrylic |
| 12 × 8.96 in (305 × 228 mm) | 5.8 mm | 3,911 mm | 1 | Any material, including 3 mm wood and acrylic |
The narrowest part is the thinnest neck that holds the design together; sharp tips are not counted. For wood and acrylic, keep it at least as wide as the sheet is thick. How to open the file in Cricut, Silhouette and laser software.
