Layered Guam on an octagon SVG

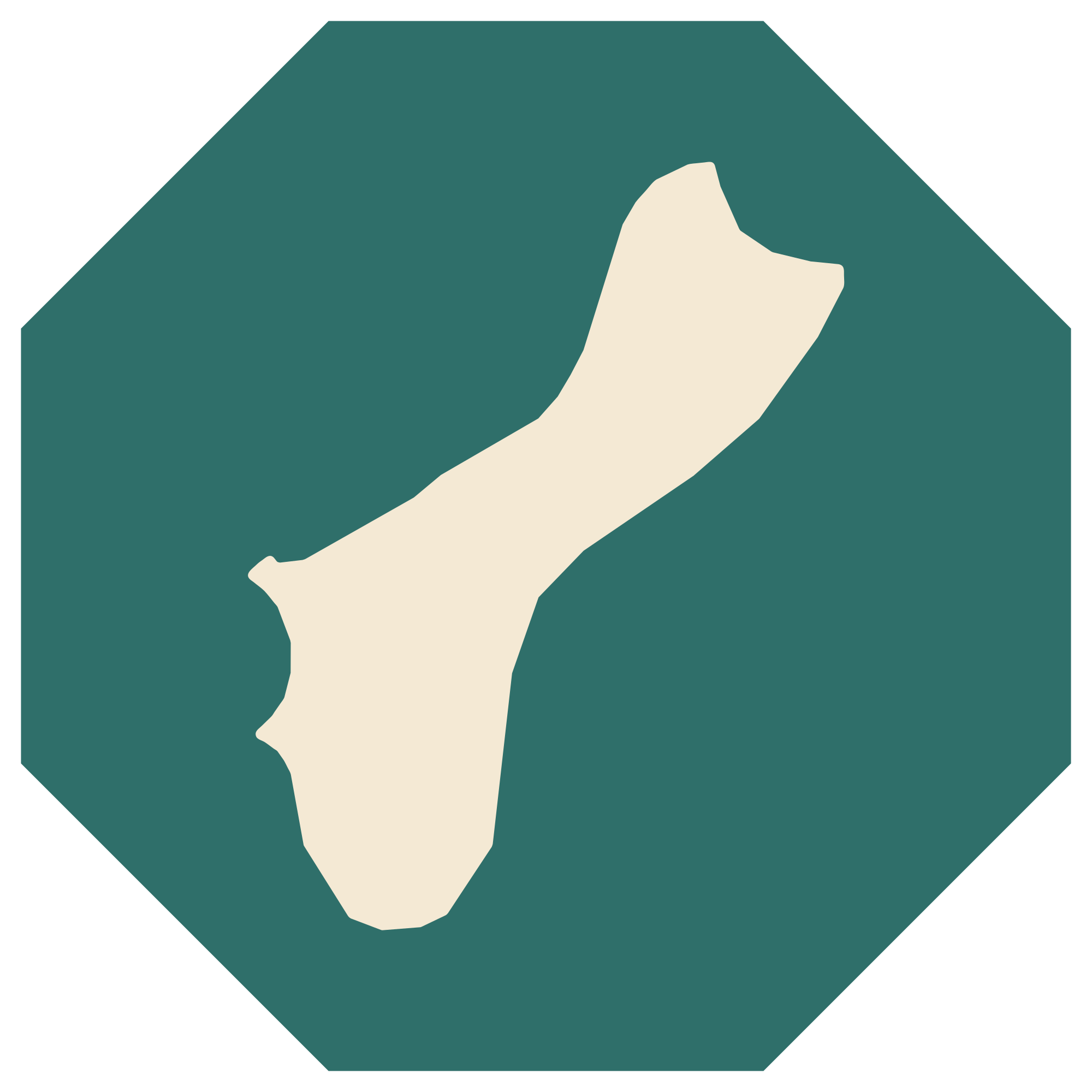

Guam in two colours: an octagon 100 mm across its points, and the shape of Guam to lay on top of it. Cut each from its own colour of vinyl or card for a badge, a patch or the front of a card.
Free for personal and commercial use, no sign-up. What you can do with it.
What is in the file
| Size | 100 × 100 mm (3.94 × 3.94 in), scales to any size |
|---|---|
| Pieces | 2 separate pieces |
| Outlines to cut | 2 outlines |
| Cut length | 537 mm at this size |
| Narrowest part | Nothing narrower than 6 mm at this size |
| Nodes | 91 curve and line segments |
| Layers | 2: octagon and guam |
Measured from the file. PNG: 2,000 × 2,000 pixels, transparent. About the three file types.
Will it cut at your size?
Scaling a design scales its thinnest part too. Here is this one at seven sizes, from 1 to 12 inches on its longer side, with how many copies fit a 12 × 12 inch sheet or mat.
| Size, width × height | Narrowest part | Cut length | Fit on a 12 in sheet | Rule of thumb |
|---|---|---|---|---|
| 1 × 1 in (25 × 25 mm) | Over 1.5 mm | 136 mm | 100 | Vinyl, card and thin sheet |
| 2 × 2 in (51 × 51 mm) | Over 3 mm | 273 mm | 25 | Any material, including 3 mm wood and acrylic |
| 3 × 3 in (76 × 76 mm) | Over 4.6 mm | 409 mm | 9 | Any material, including 3 mm wood and acrylic |
| 4 × 4 in (102 × 102 mm) | Over 6.1 mm | 546 mm | 4 | Any material, including 3 mm wood and acrylic |
| 6 × 6 in (152 × 152 mm) | Over 9.1 mm | 818 mm | 1 | Any material, including 3 mm wood and acrylic |
| 8 × 8 in (203 × 203 mm) | Over 12 mm | 1,091 mm | 1 | Any material, including 3 mm wood and acrylic |
| 12 × 12 in (305 × 305 mm) | Over 18 mm | 1,637 mm | 1 | Any material, including 3 mm wood and acrylic |
The narrowest part is the thinnest neck that holds the design together; sharp tips are not counted. For wood and acrylic, keep it at least as wide as the sheet is thick. How to open the file in Cricut, Silhouette and laser software.
