Layered Celtic trinity knot in two colours SVG
Which one? SVG for Cricut and lasers, DXF for the free Silhouette Studio, PNG to print.
Free for personal and commercial use, no sign-up. What you can do with it.

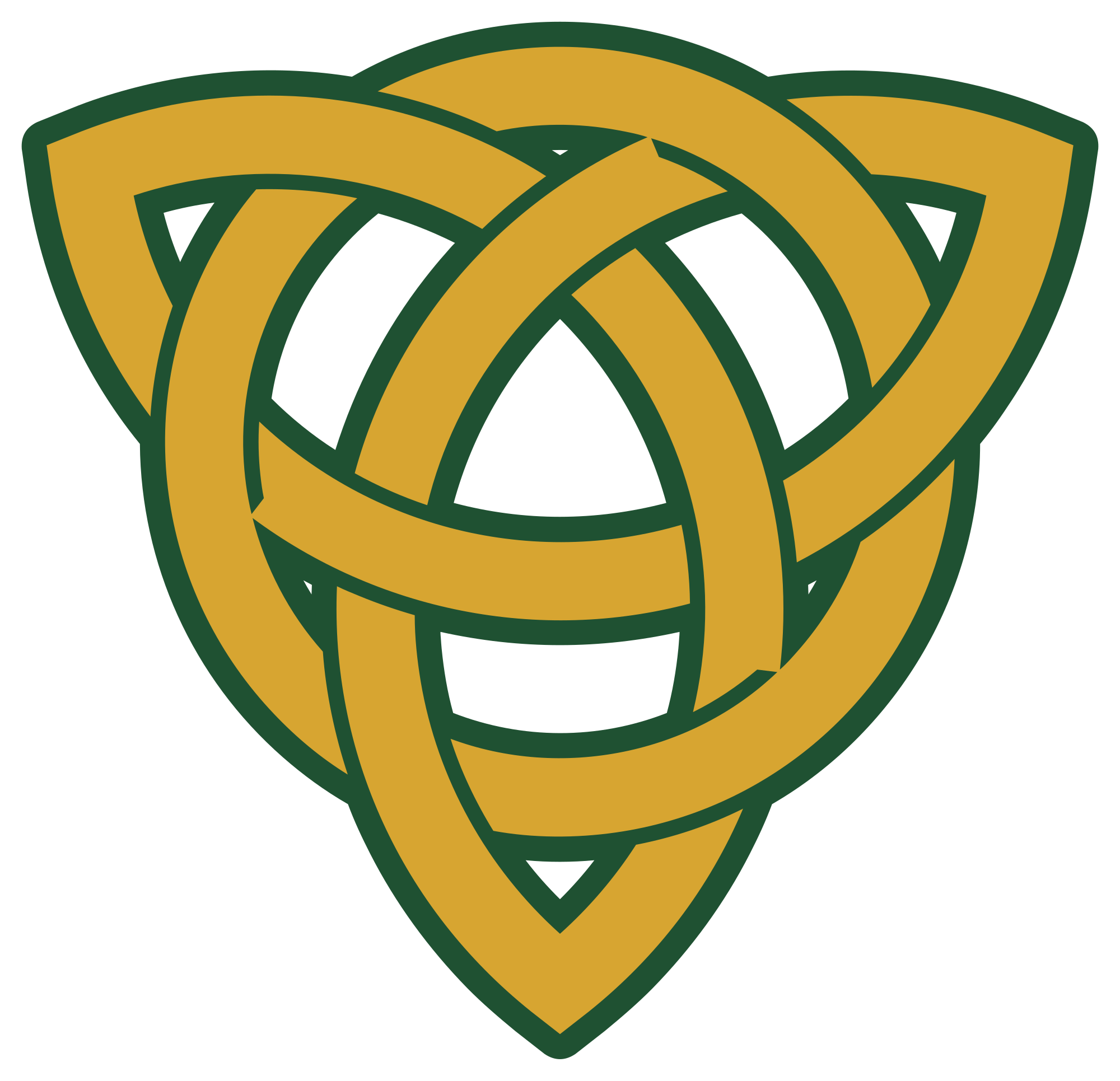

Two layers: a dark backing in the outline of the whole knot, and the trinity knot and its circle on top as gold bands cut back at each crossing. The backing holds the loose lengths in place.
What is in the file
| Size | 100 × 96 mm (3.94 × 3.8 in), scales to any size |
|---|---|
| Pieces | 7 separate pieces |
| Outlines to cut | 17: 7 outer edges and 10 cut-outs |
| Cut length | 1,712 mm at this size |
| Narrowest part | Nothing narrower than 6 mm at this size |
| Nodes | 146 curve and line segments |
| Layers | 2: layer 1 backing and layer 2 knot |
Measured from the file. PNG: 2,000 × 1,931 pixels, transparent. About the three file types.
Will it cut at your size?
Scaling a design scales its thinnest part too. Here is this one at seven sizes, from 1 to 12 inches on its longer side, with how many copies fit a 12 × 12 inch sheet or mat.
| Size, width × height | Narrowest part | Cut length | Fit on a 12 in sheet | Rule of thumb |
|---|---|---|---|---|
| 1 × 0.96 in (25 × 24 mm) | Over 1.5 mm | 435 mm | 100 | Vinyl, card and thin sheet |
| 2 × 1.93 in (51 × 49 mm) | Over 3 mm | 870 mm | 25 | Any material, including 3 mm wood and acrylic |
| 3 × 2.89 in (76 × 73 mm) | Over 4.6 mm | 1,305 mm | 9 | Any material, including 3 mm wood and acrylic |
| 4 × 3.86 in (102 × 98 mm) | Over 6.1 mm | 1,739 mm | 6 | Any material, including 3 mm wood and acrylic |
| 6 × 5.78 in (152 × 147 mm) | Over 9.1 mm | 2,609 mm | 2 | Any material, including 3 mm wood and acrylic |
| 8 × 7.71 in (203 × 196 mm) | Over 12 mm | 3,479 mm | 1 | Any material, including 3 mm wood and acrylic |
| 12 × 11.57 in (305 × 294 mm) | Over 18 mm | 5,218 mm | 1 | Any material, including 3 mm wood and acrylic |
The narrowest part is the thinnest neck that holds the design together; sharp tips are not counted. For wood and acrylic, keep it at least as wide as the sheet is thick. How to open the file in Cricut, Silhouette and laser software.
