Layered Asia on an octagon SVG

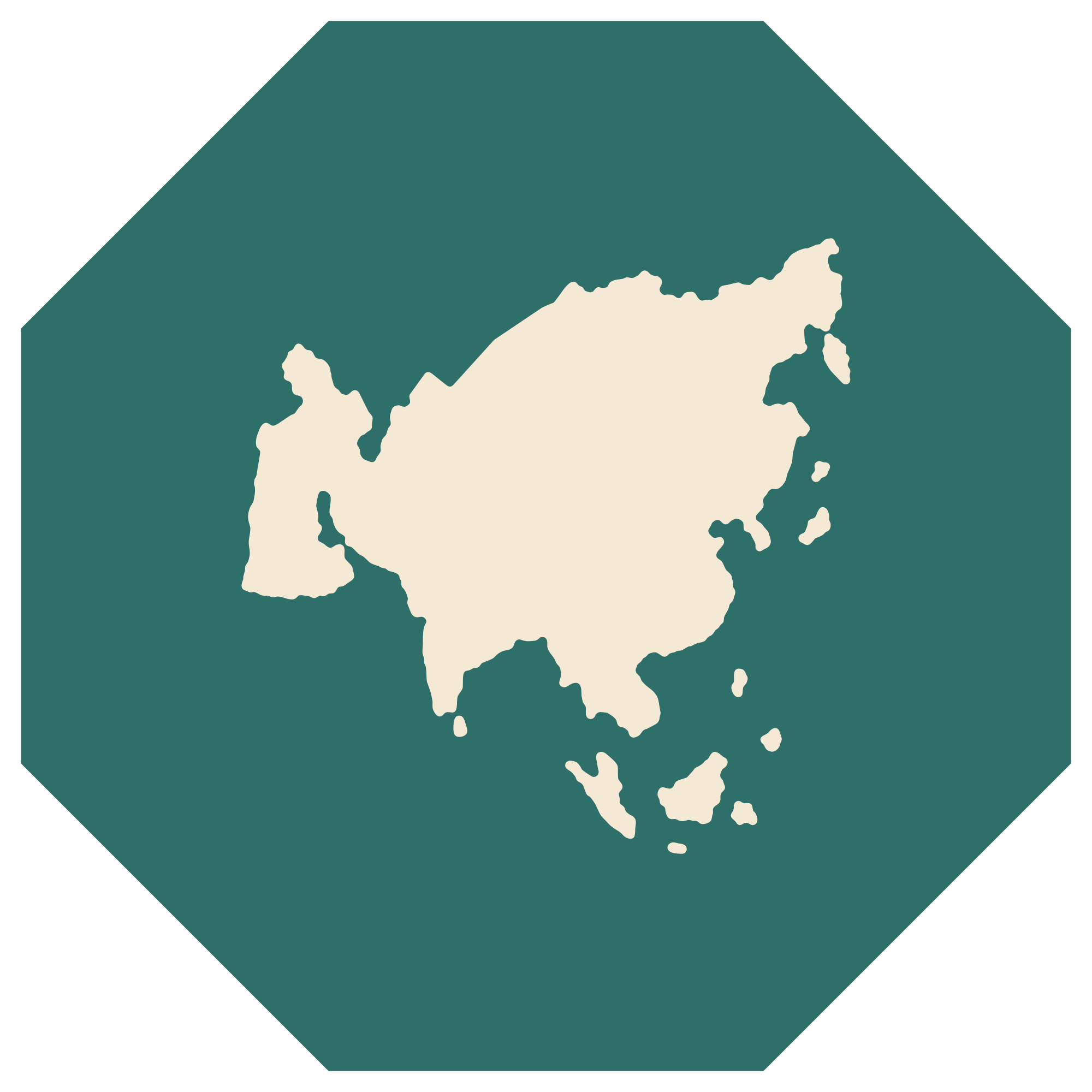

Layered Asia on an octagon, in layered colours — Layered Asia on an octagon. The preview is the SVG file itself.

Asia in two colours: an octagon 100 mm across its points, and the shape of Asia to lay on top of it. Cut each from its own colour of vinyl or card for a badge, a patch or the front of a card.

Download SVG PNG DXF

Free for personal and commercial use, no sign-up. What you can do with it.

What is in the file

Size	100 × 100 mm (3.94 × 3.94 in), scales to any size
Pieces	12 separate pieces
Outlines to cut	12 outlines
Cut length	709 mm at this size
Narrowest part	Nothing narrower than 6 mm at this size
Nodes	560 curve and line segments
Layers	2: octagon and asia

Measured from the file. PNG: 2,000 × 2,000 pixels, transparent. About the three file types.

Will it cut at your size?

Scaling a design scales its thinnest part too. Here is this one at seven sizes, from 1 to 12 inches on its longer side, with how many copies fit a 12 × 12 inch sheet or mat.

Size, width × height	Narrowest part	Cut length	Fit on a 12 in sheet	Rule of thumb
1 × 1 in (25 × 25 mm)	Over 1.5 mm	180 mm	100	Vinyl, card and thin sheet
2 × 2 in (51 × 51 mm)	Over 3 mm	360 mm	25	Any material, including 3 mm wood and acrylic
3 × 3 in (76 × 76 mm)	Over 4.6 mm	540 mm	9	Any material, including 3 mm wood and acrylic
4 × 4 in (102 × 102 mm)	Over 6.1 mm	720 mm	4	Any material, including 3 mm wood and acrylic
6 × 6 in (152 × 152 mm)	Over 9.1 mm	1,081 mm	1	Any material, including 3 mm wood and acrylic
8 × 8 in (203 × 203 mm)	Over 12 mm	1,441 mm	1	Any material, including 3 mm wood and acrylic
12 × 12 in (305 × 305 mm)	Over 18 mm	2,161 mm	1	Any material, including 3 mm wood and acrylic

The narrowest part is the thinnest neck that holds the design together; sharp tips are not counted. For wood and acrylic, keep it at least as wide as the sheet is thick. How to open the file in Cricut, Silhouette and laser software.
